Description

Specification

---

Model

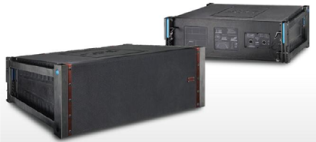

FLE-12PT

---

Frequency Response

65Hz~18KHz(± 3dB)

---

Component

LF: 1×12″ (3″ voice coil)

,MF: 2×6.5″ (1.7″ voice coil),

HF: 2×1.4″ (3″ voice coil)

---

Rated Power

LF: 500W/MF: 300W/HF: 120W AES

LF: 2000W/MF: 1200W/HF: 800W Peak

---

Recommended Amplifier

500W~1000W into 4ohms

---

Sensitivity

LF: 95dB/MF: 101dB/HF: 111dB

---

Maximum SPL

LF: 127dB/MF: 132dB/HF: 138dB

---

Nominal Impedance

LF: 8 ohms/MF: 8 ohms/HF: 8 ohms

---

Dispersion

120° Hx8° V

---

Enclosure

Birch plywood

---

Finish

Black, scrath paint

---

Grill

steel grill with black foam

---

Connectors

2xNeutrik Nl8

---

Fitting

FLE additional rigging system

---

Dimension (HWD)

360x990x570mm

---

N.W.

55kg(121 lb)

---

Packing Dimension (HWD)

820x1060x435 mm

(1 into1flightcase)0.38 M

---

N.W.

82kg(1 into1flightcase)181 lb

---
